Newest Aqara Smart Wall Switch E1 ZigBee Smart Home Wireless Light Switch Fire Wire With NO Neutral For Xiaomi Mi Home homekit
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Aqara Wall Switch E1: Wall Switch E1
Battery Included: Yes
Brand Name: Aqara
Certification: CE,RoHS
Communication method: Zigbee
Control Channels: 2 CHANNELS
Does It Includes Wireless Communication: Yes
E1 NO Neutral Switch: Wall Switch E1
Guarantee 1: Official genuine goods
Guarantee 2: Fake One Pay Ten
Guarantee 3: One-year warranty
High-concerned chemical: None
Inbox adaptor: No
Model Number: Aqara Wall Switch E1
Origin: Mainland China
Power Source: AC,AC
Product model 1: QBKG38LM / No Neutral
Product model 2: QBKG39LM / No Neutral
Product model 3: QBKG40LM / With Neutral
Product model 4: QBKG41LM / With Neutral
Product model 5: WXKG16LM (Wireless) 1 KEY
Product model 6: WXKG17LM (Wireless) 1 KEY
State of Assembly: Ready-to-Go
The rated voltage: Max 5A 220V~50Hz
switch: aqara e1 switch
Newest Aqara Smart Wall Switch E1 ZigBee Smart Home Wireless Light Switch Fire Wire With NO Neutral For Xiaomi Mi Home homekit
Please Note：
1) This is the Mainland China version. If the switch cannot connect to the mobile APP, please set the region to Mainland China in the mobile APP settings and check whether the hub gateway has successfully connected to the mobile APP.
2) This link has 3 specifications (With neutral switch, No neutral switch, wireless switch) and two colors (white and grey), please check the specification and color you need to buy before purchasing.

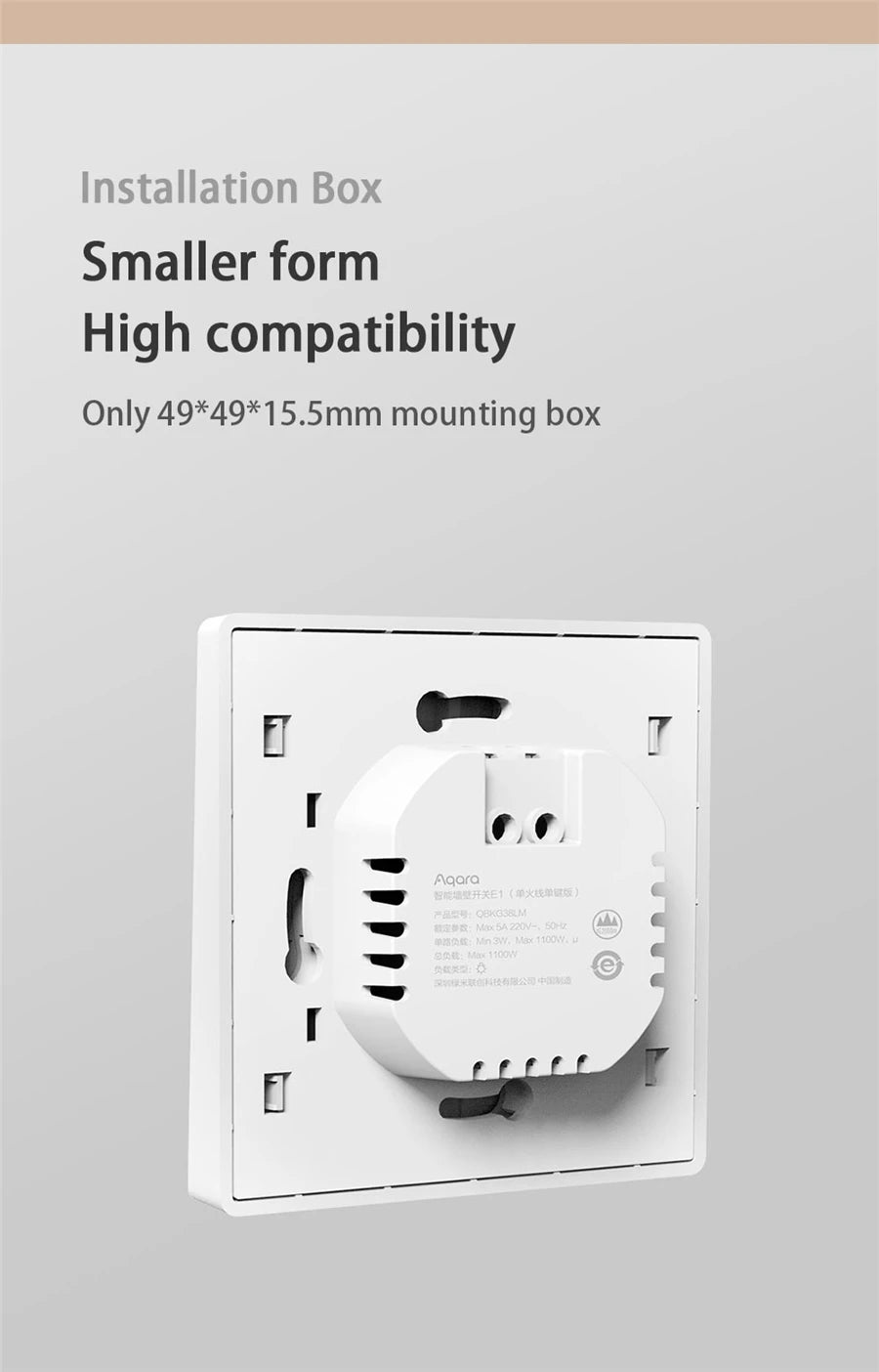

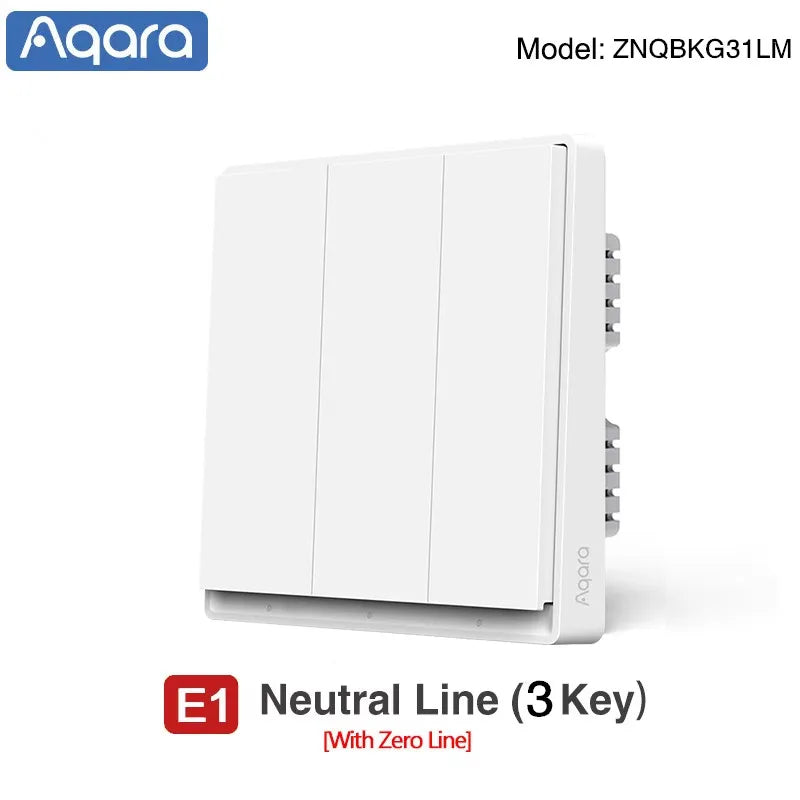

3) The back of 1key and 2key are round, and the back of 3key is square
4) If you want to connect the switch on the mobile app, please connect the Aqara ZigBee hub gateway in the app first, the hub gateway needs to be purchased separately..
5) This switch must work with Aqara ZigBee 3.0 gateway to be used in mobile APP. Compatible gateways (Gateway M1S 2022, Gateway M1S (2nd Generation) Gateway M2, Gateway M2 2022, Gateway E1, Gateway M100, Smart Hub M3, Camera G3 gateway version) and more.

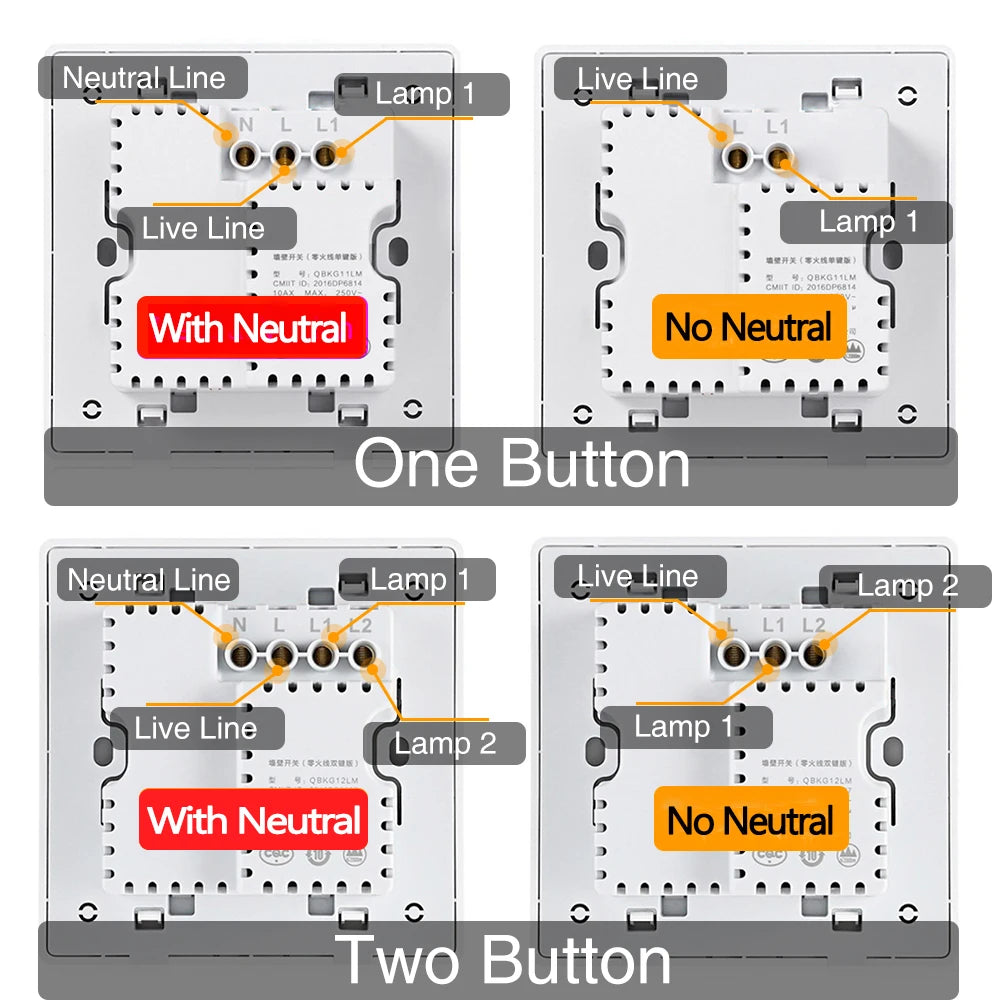

Note: The wall switch can connect the wire, can control any bulb throught the wire ; or control by phone APP .
while the wireless key cannot wired, only can control mijai smart bulb or light through phone APP

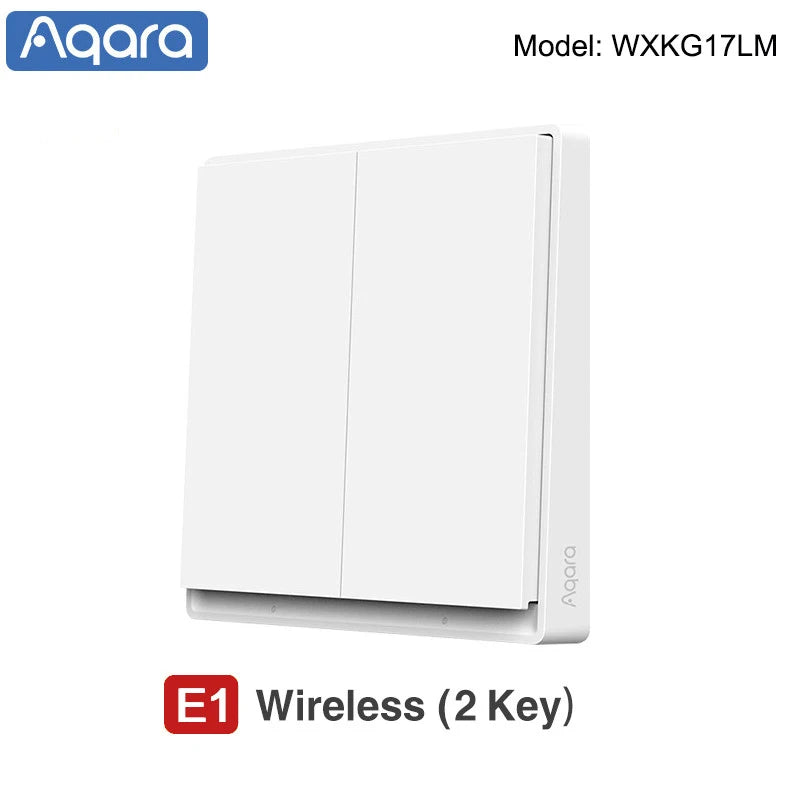

1 ) WIRELESS VERSION
Note: This switch has to work with zigbee Gateway hub to achieve smart remote control function
Features :
Cannot be wired, match with xiaomi or aqara smart bulb or light through ZigBee 3.0

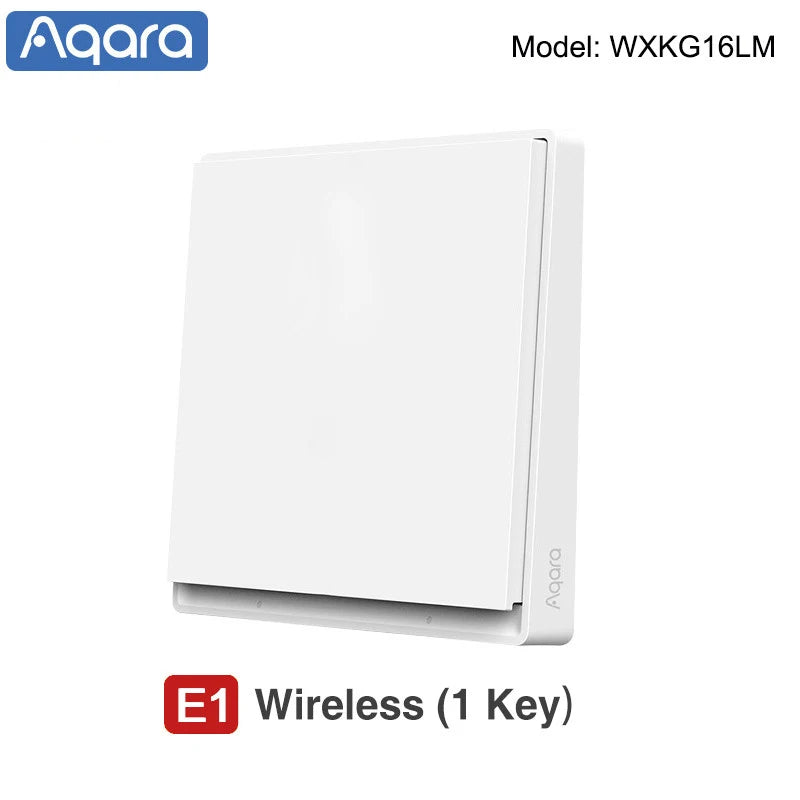

* model ( wireless 1key : WXKG16LM , wireless 2key :WXKG17LM )
* Portable, realize controlling everywhere
* Wireless connection: ZiGBee 3.0
* Built-in CR2032 battery
* support APP : mi home , aqara home , homekit .

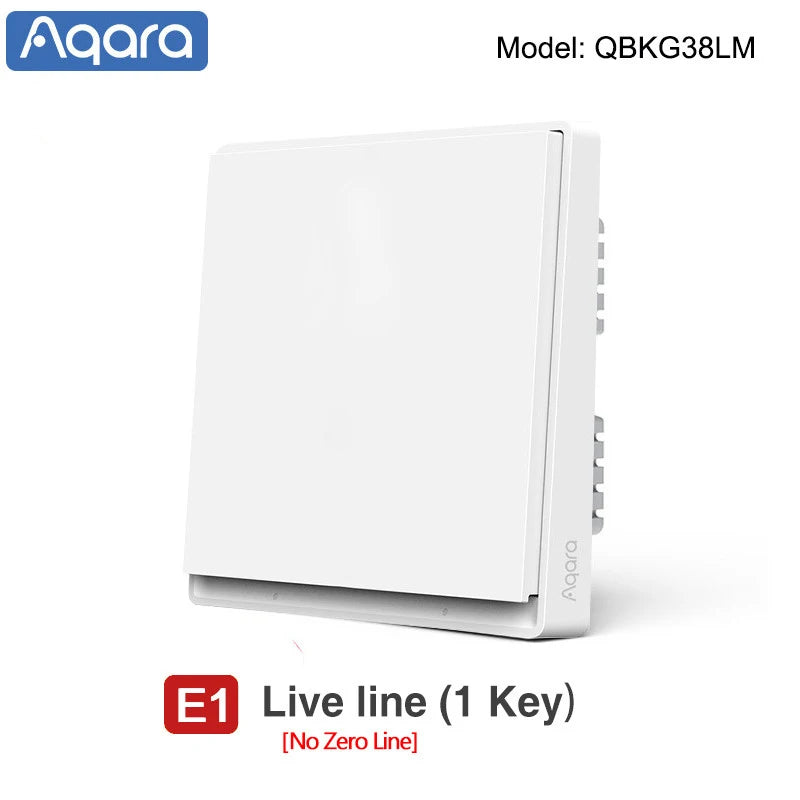

2) Aqara Smart Wall Switch E1 (No Neutral)
Single Rocker ( 1 key )
Model: QBKG38LM
Dimensions: 86 x 86 x 30.15mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: 220V--, 50Hz
Rated Power: Max 1100W, Min 3W
Operating Temperature:0°C~40°C
Operating Humidity: 5~95% RH. No condensation
Double Rocker (2 keys)
Model: QBKG39LM
Dimensions: 86 x 86 x 30.15mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: 220V~，50Hz
Rated Power: Max 1100W, Min 3W
Operating Temperature:0°C~40°C
Operating Humidity: 5~95% RH. No condensation

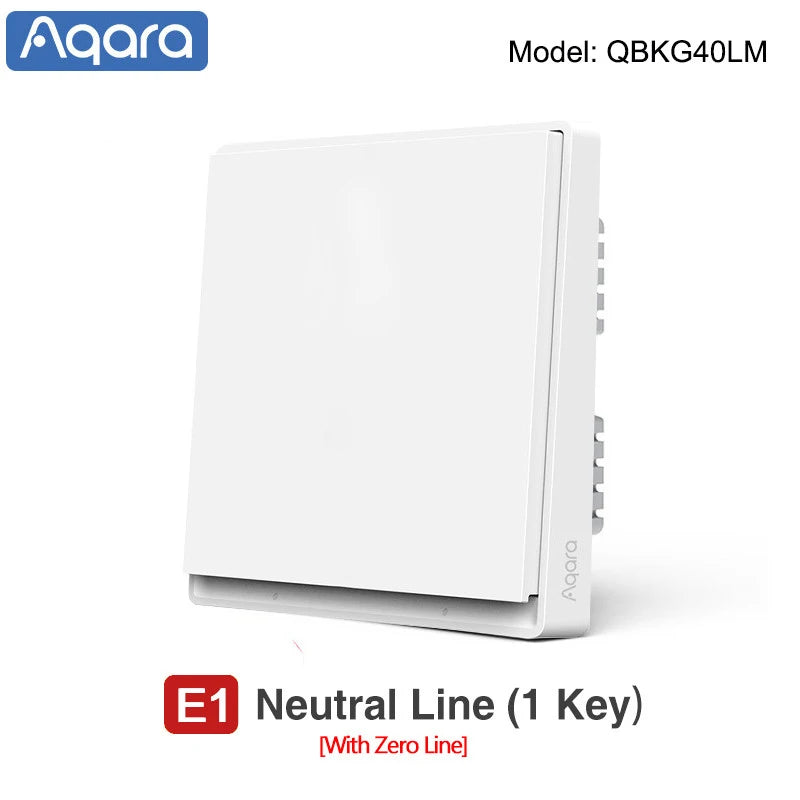

3) Aqara Smart Wall Switch E1 (With Neutral)
Single Rocker ( 1 key )
Model: QBKG40LM
Dimensions: 86 x 86x 30.15mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: Max 10A220V~, 50Hz
Rated Power: Max 1100W
Operating Temperature:0" C~40" C
Operating Humidity: 5~95% RH. No condensation
Double Rocker (2 keys)

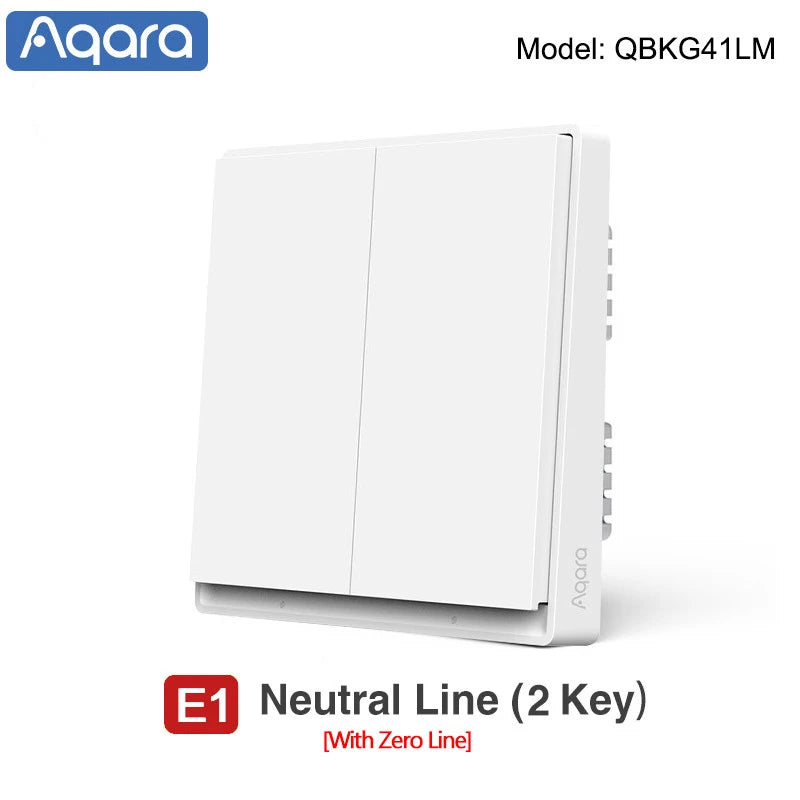

Model: QBKG41LM
Dimensions: 86 x 86 x 30.15mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: Max 5A 220V~, 50Hz
Rated Power: Max 1100W
Operating Temperature:0" C~ 40 C
Operating Humidity: 5~95% RH. No condensation
